The most advanced scale model solution available
Inner Light is a fully modular and programmable lighting and sound solution for scale models, with an easy to use configuration interface —
Designed for those with little to no computing or electronics experience. Everything is configurable - s, brightness, effects, sound, control interface...bring your creation to life with absolute precision.
Suitable for any scale model.
At the heart of the solution is the controller - it controls what each LED does. Choose between two cost effective 'Lite' controllers for smaller projects, or a 'Pro' controller for more advanced builds.
All controllers allow you to control your model with a customised wireless app running on your phone or tablet - contact me for further details
| Features | Lite : |
Lite Plus : |
Pro : |
|---|---|---|---|
| maximum LEDs | 30 | 40 | 2000 |
| effect types | basic flash, fade | basic flash, fade | advanced including random / image |
| maximum scenes | 10 | 10 | unlimited |
| LED type | RGB | RGB | RGB, RGBW |
| integrated audio | basic | advanced | |
| button interface | up to 4 | up to 8 | |
| WiFi network mode | |||
| timed scheduling |
Fully Modular
The same selection of components are used, no matter what model you are building. The controller tells the LED lights what to do and when - every light can behave however you wish.

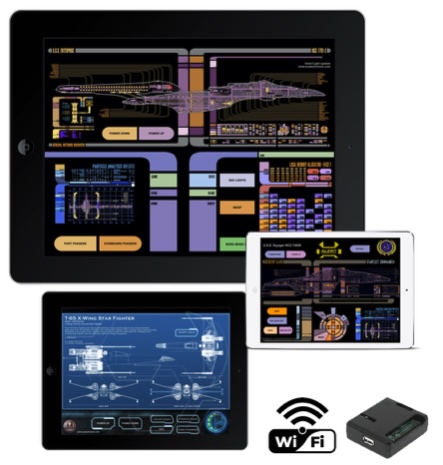

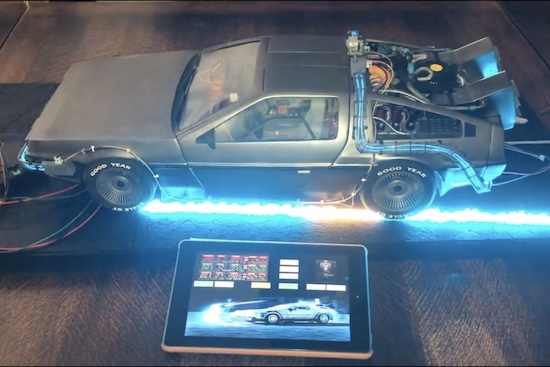

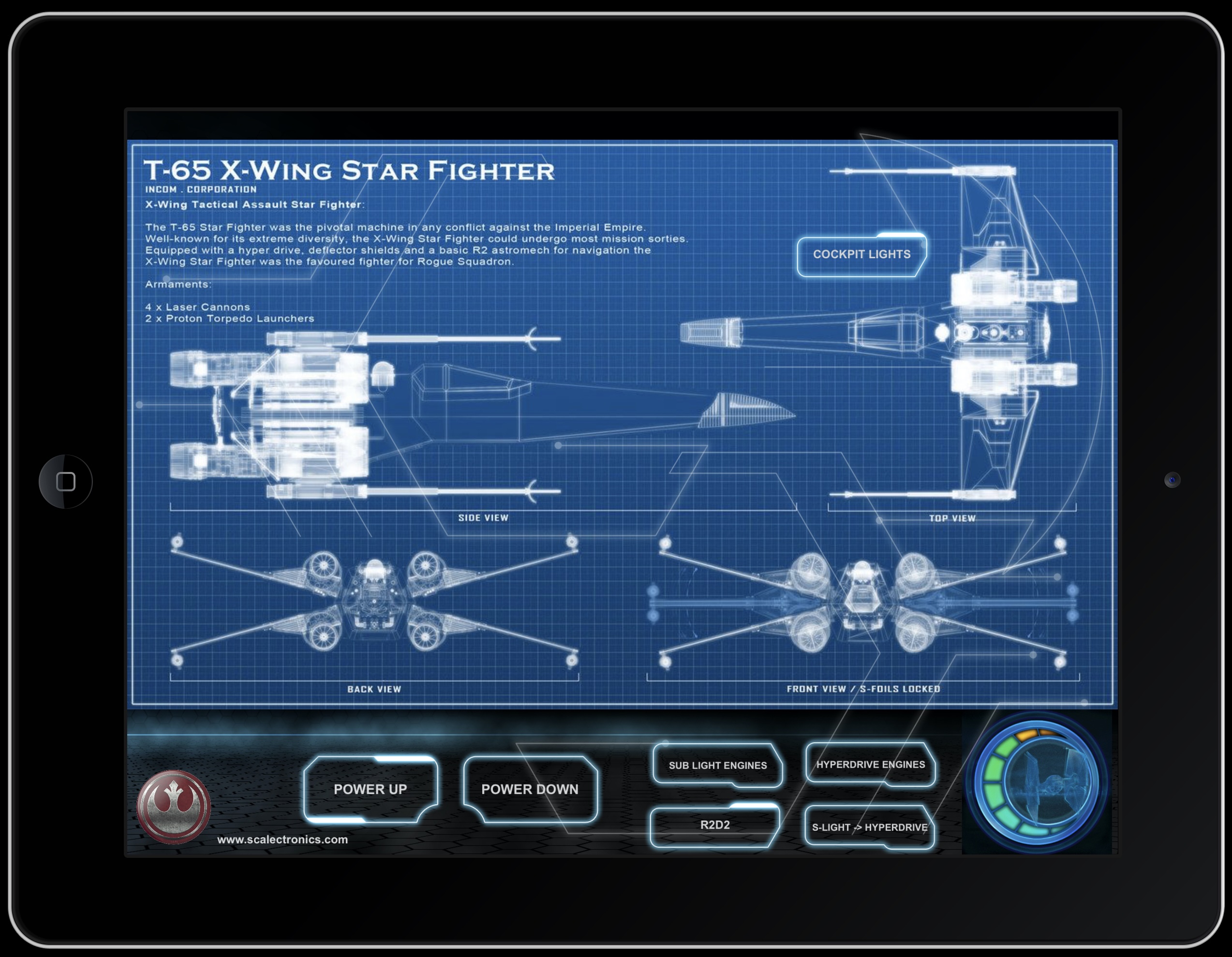

Wireless App Control

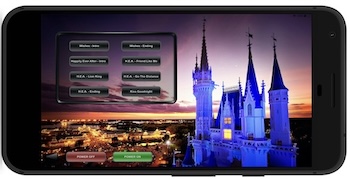

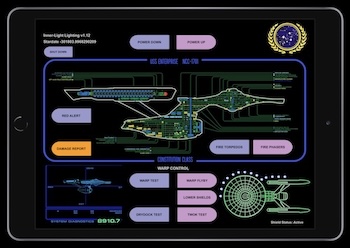

Control scenes and effects from your tablet, phone or watch (any device running iOS or Android), wirelessly, using a completely customisable user interface.
Entirely Customisable
Using the intuitive user interface, you decide how the lights and sounds behave in your model. Everything can be altered, even after you have installed lights inside your model.
|
WARNING - all components sold are to be used for the purposes of home use diy scale model building by adults only. There are small parts which may present a choking hazard - it is essential that you keep all components out of reach of children. The LED lights are bright, and it is possible to program the lights to flash rapidly, so care should be taken with regards to epilepsy etc. Components use 5V DC power. Always disconnect the electricity supply before connecting / disconnecting any components. |

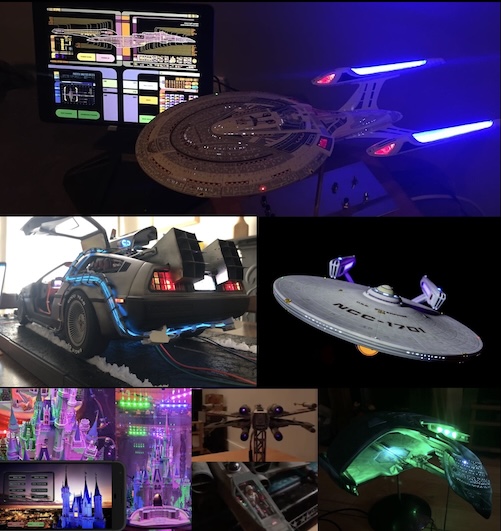

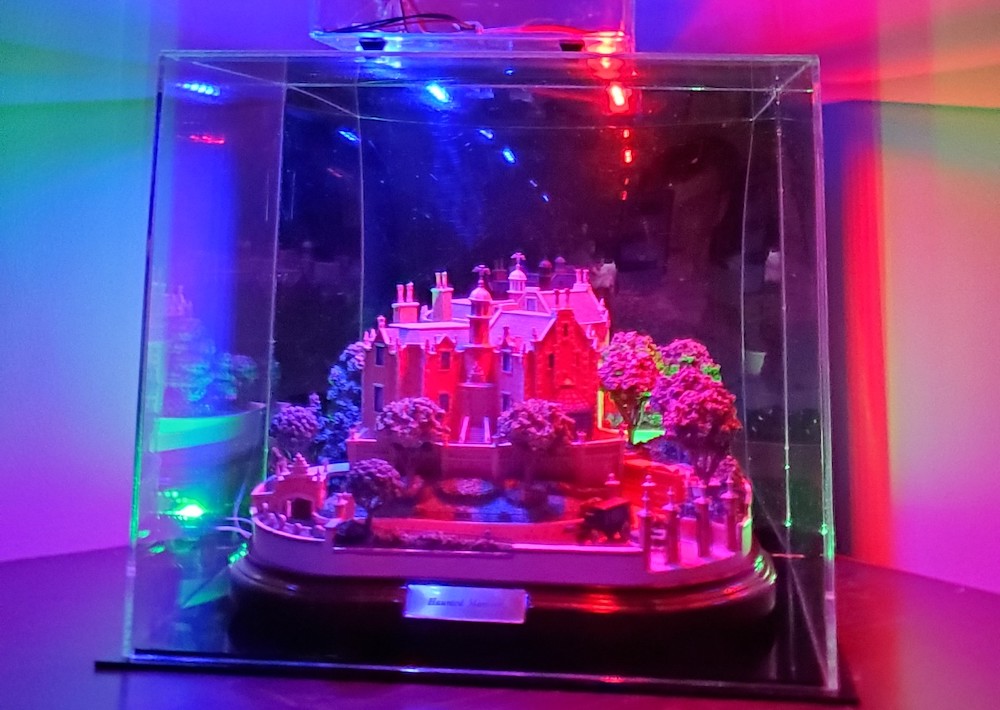

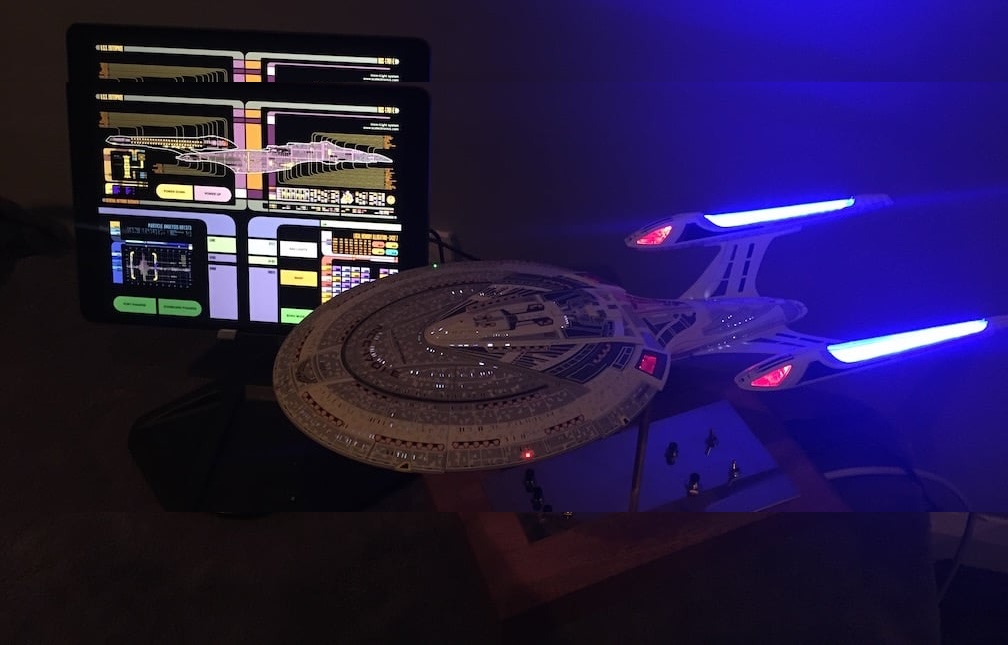

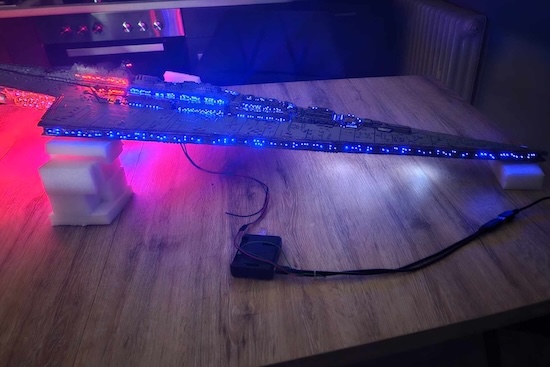

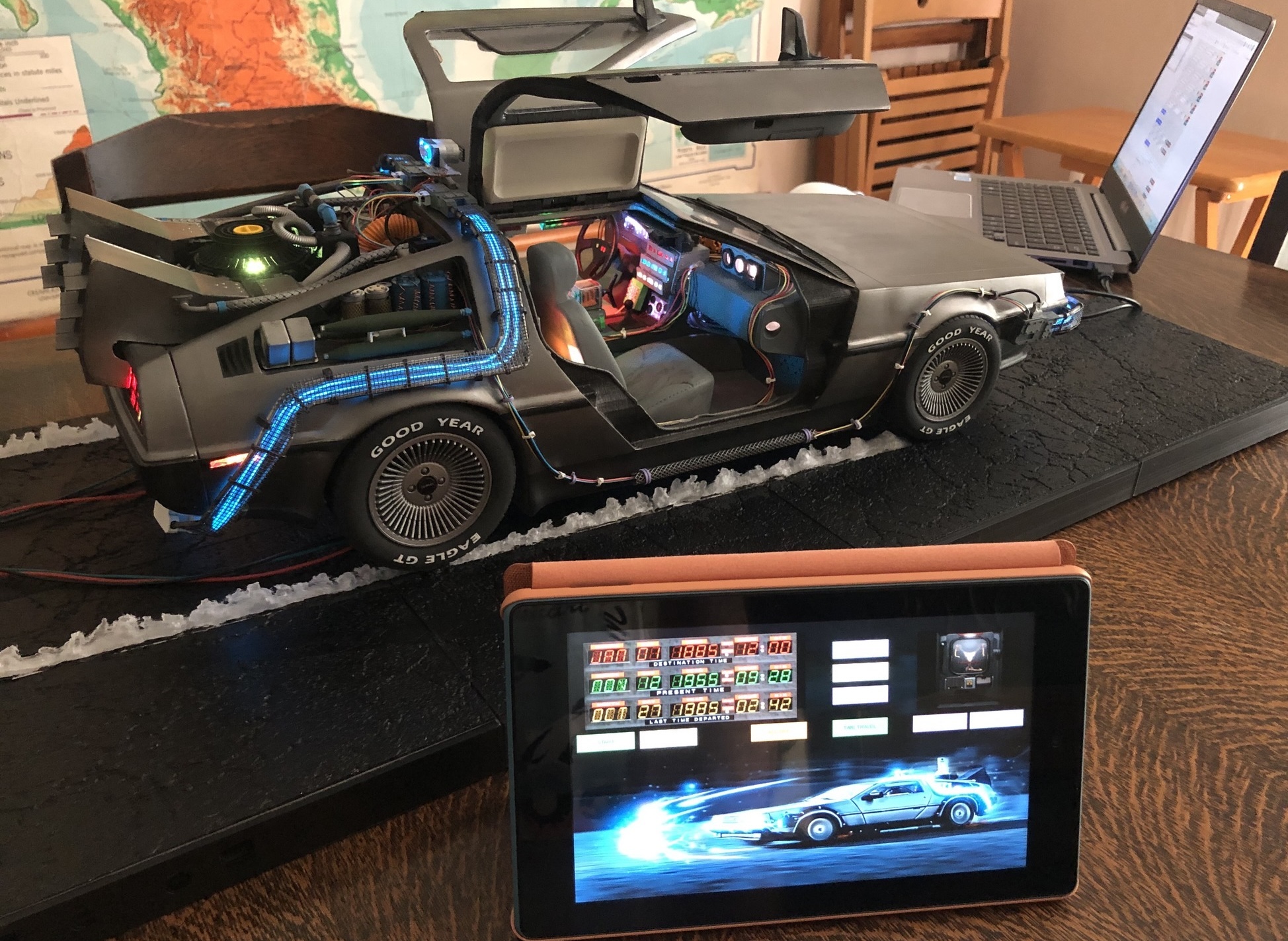

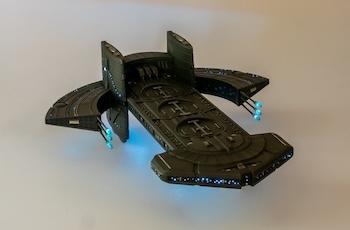

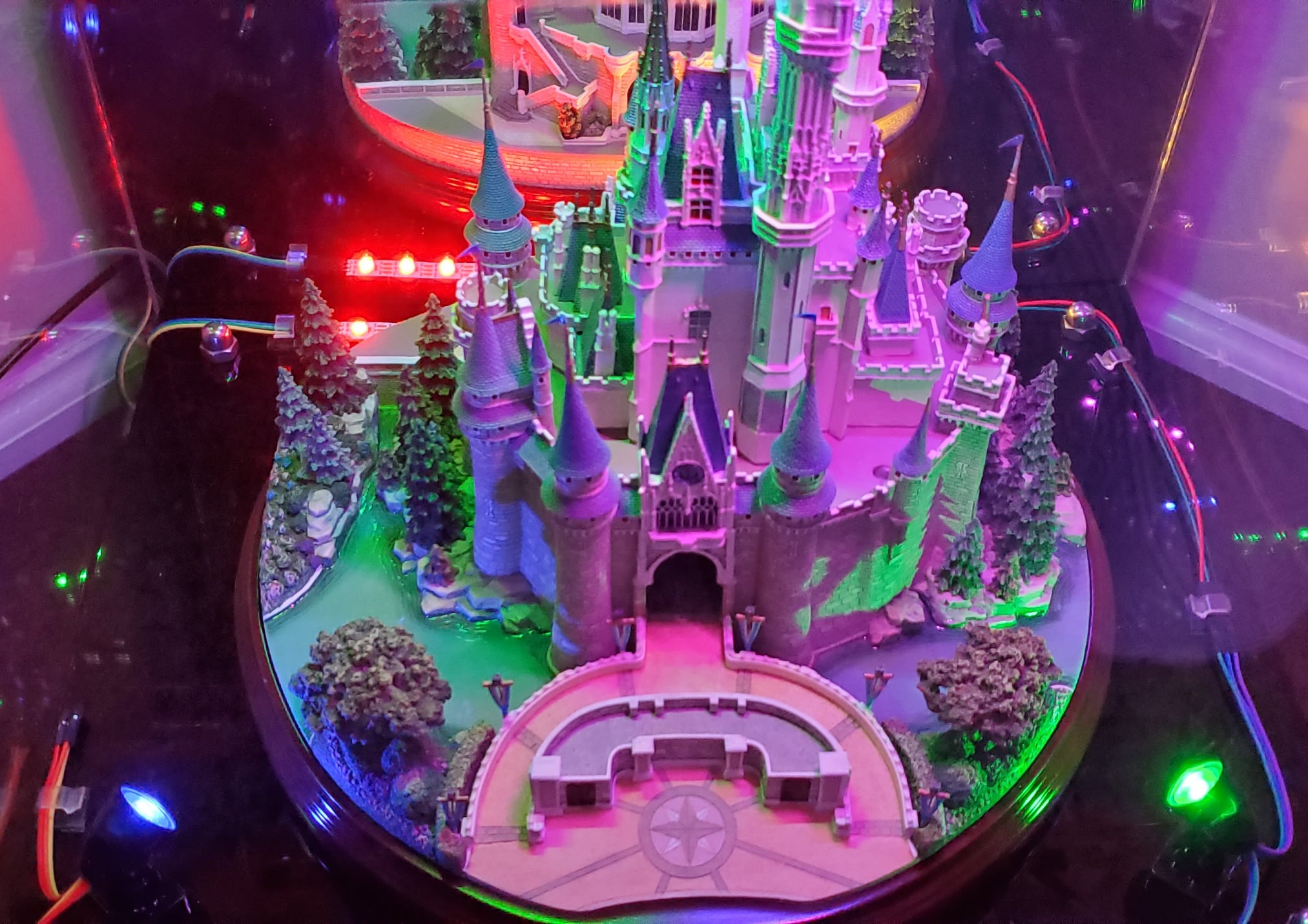

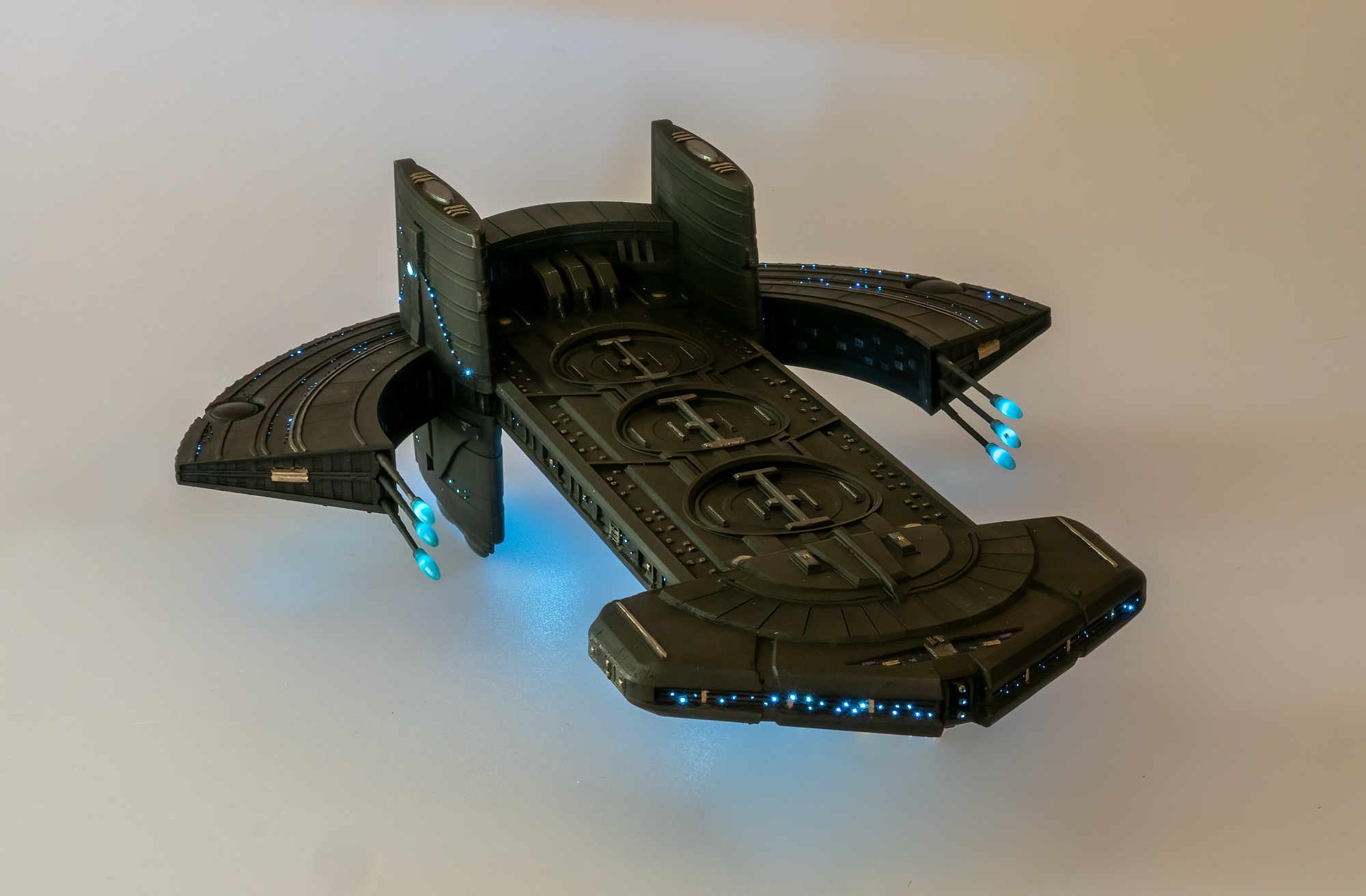

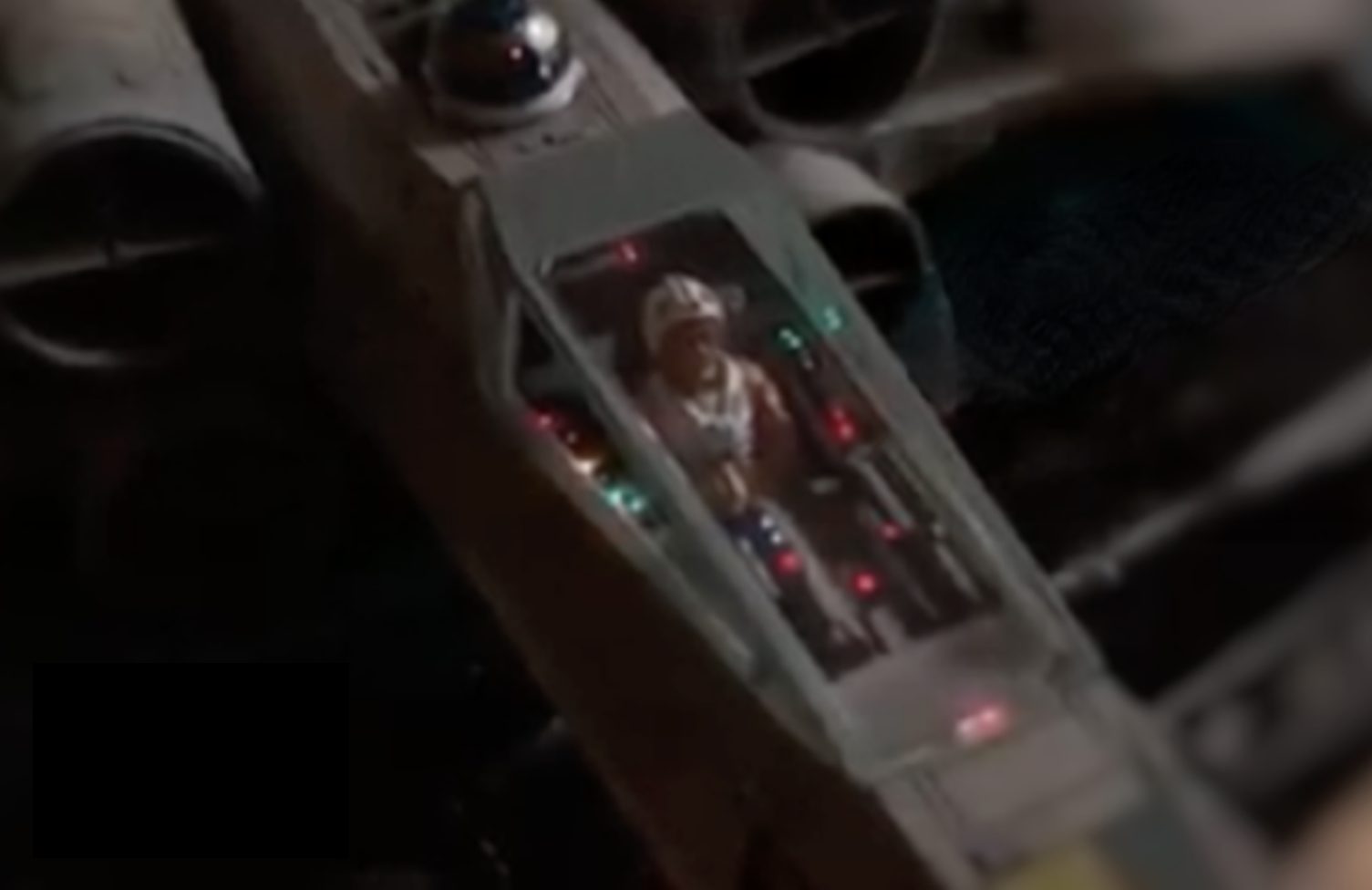

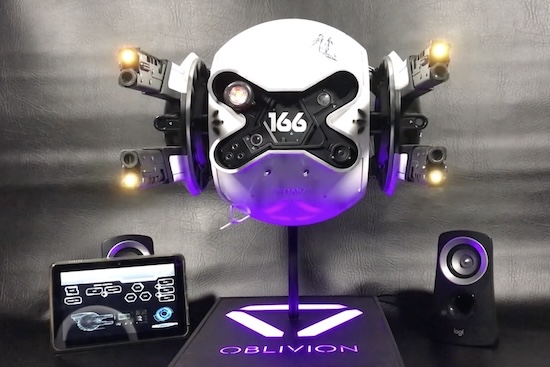

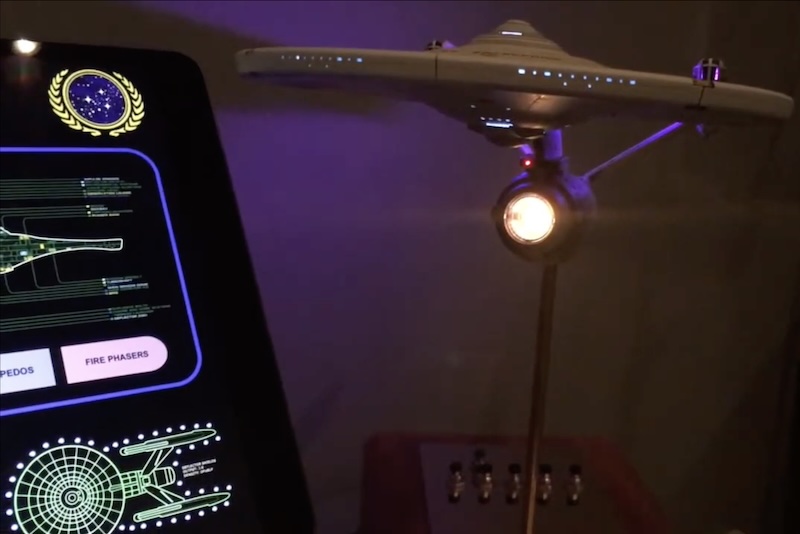

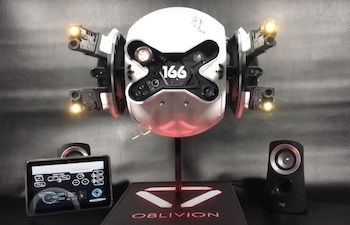

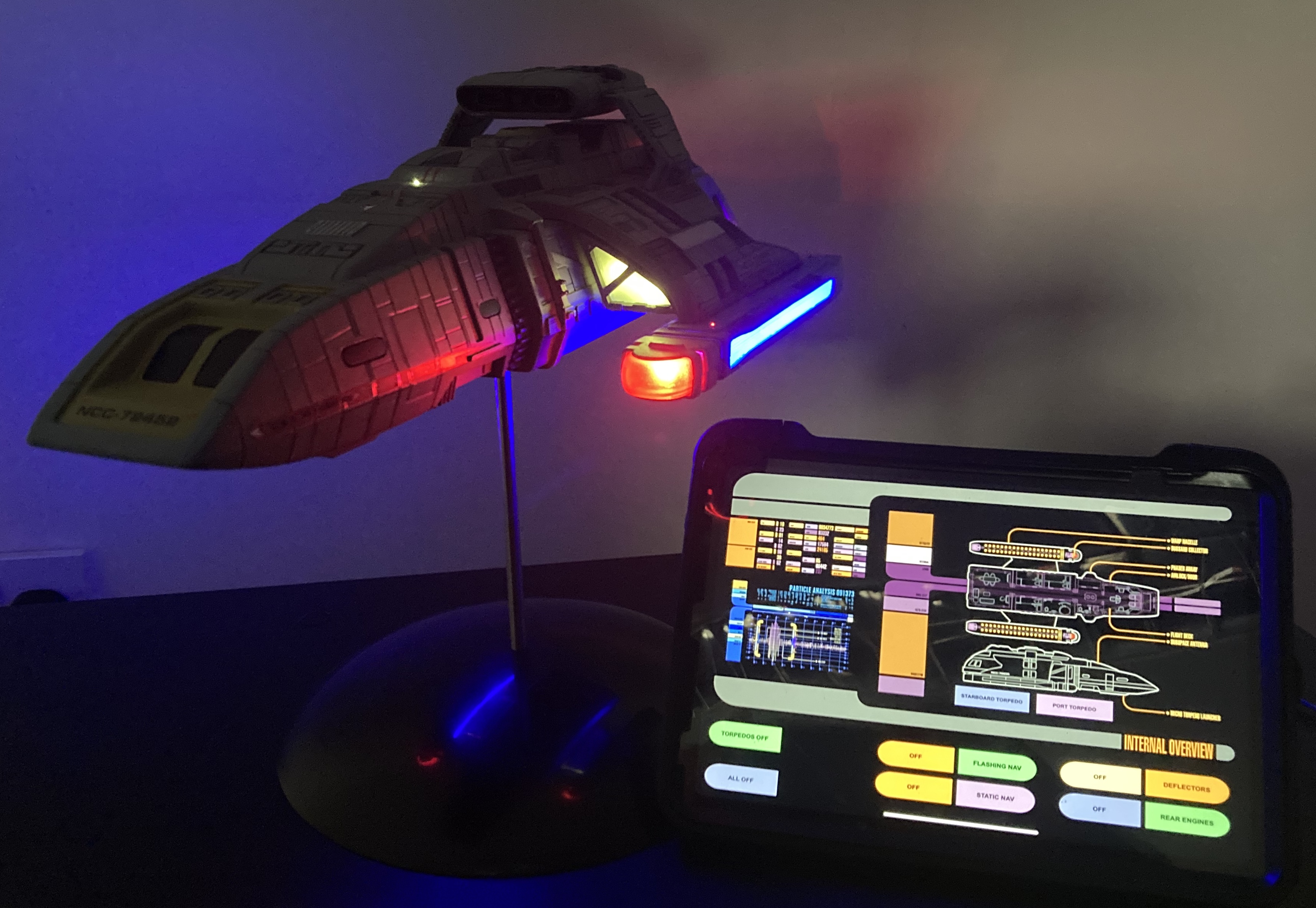

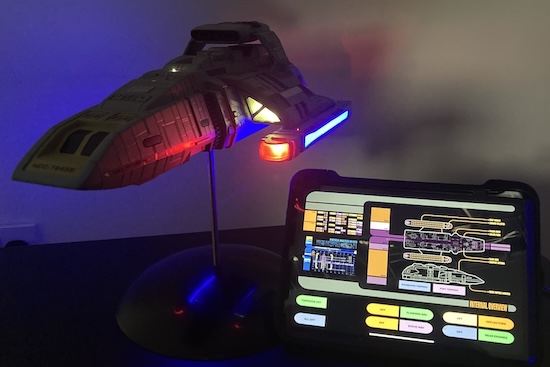

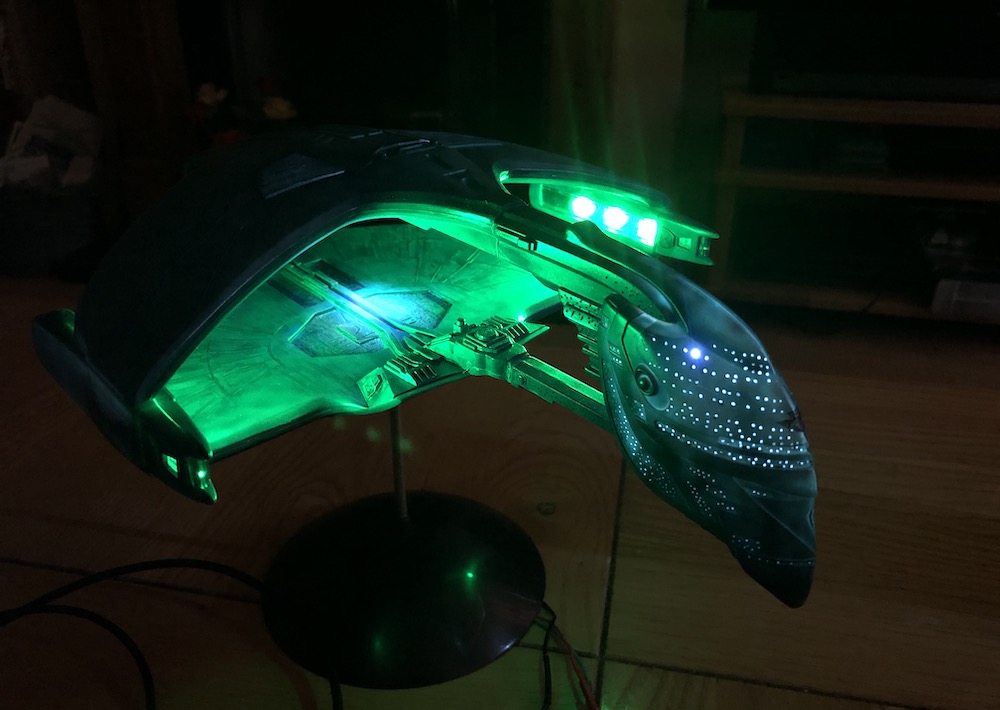

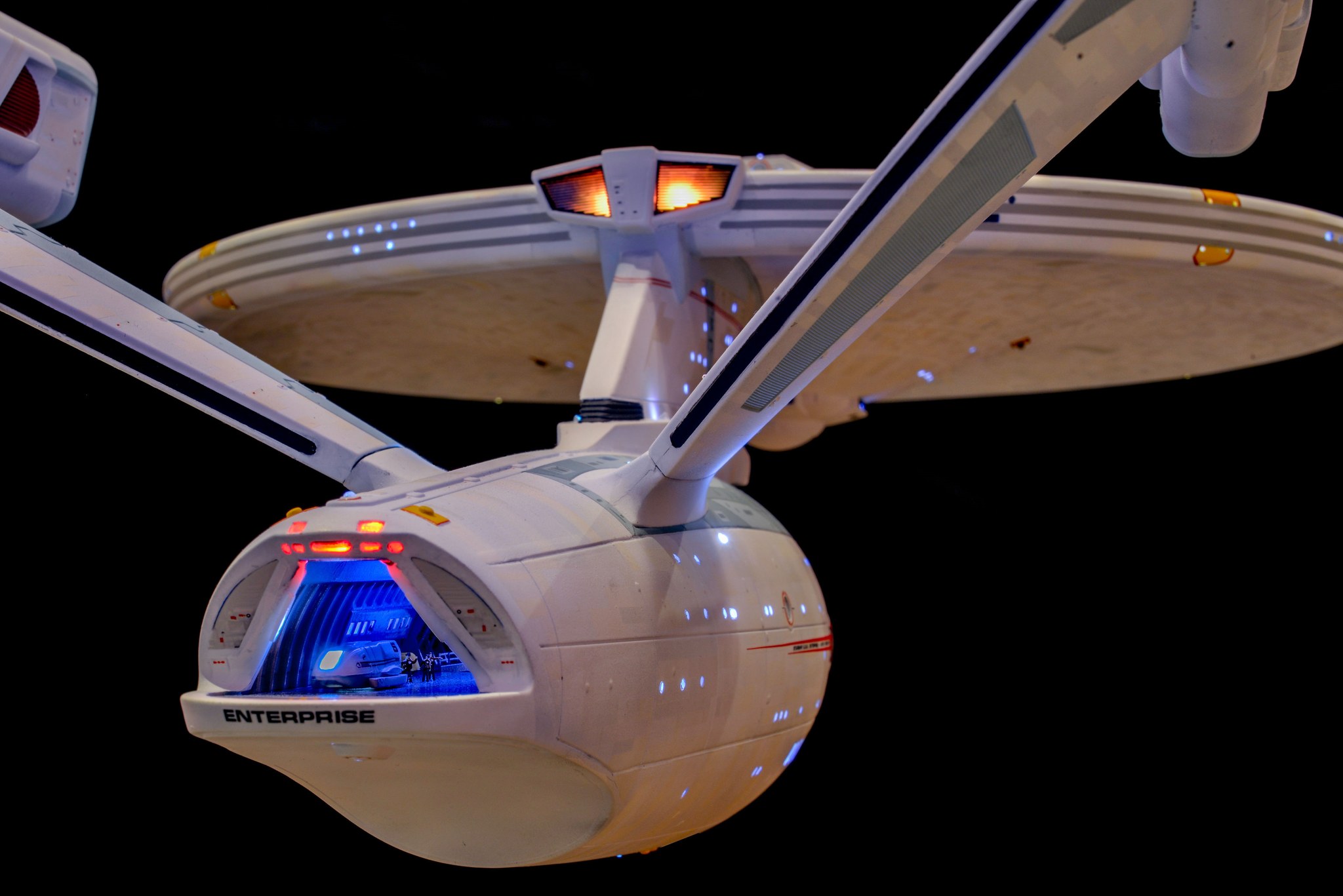

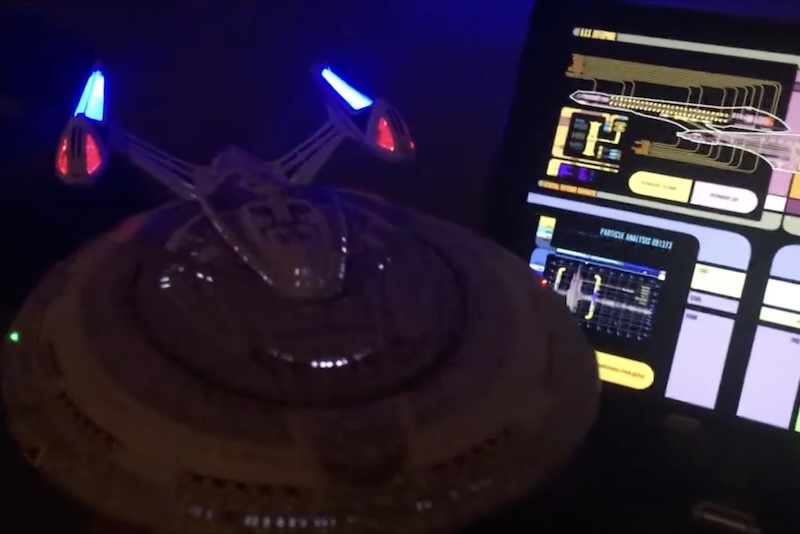

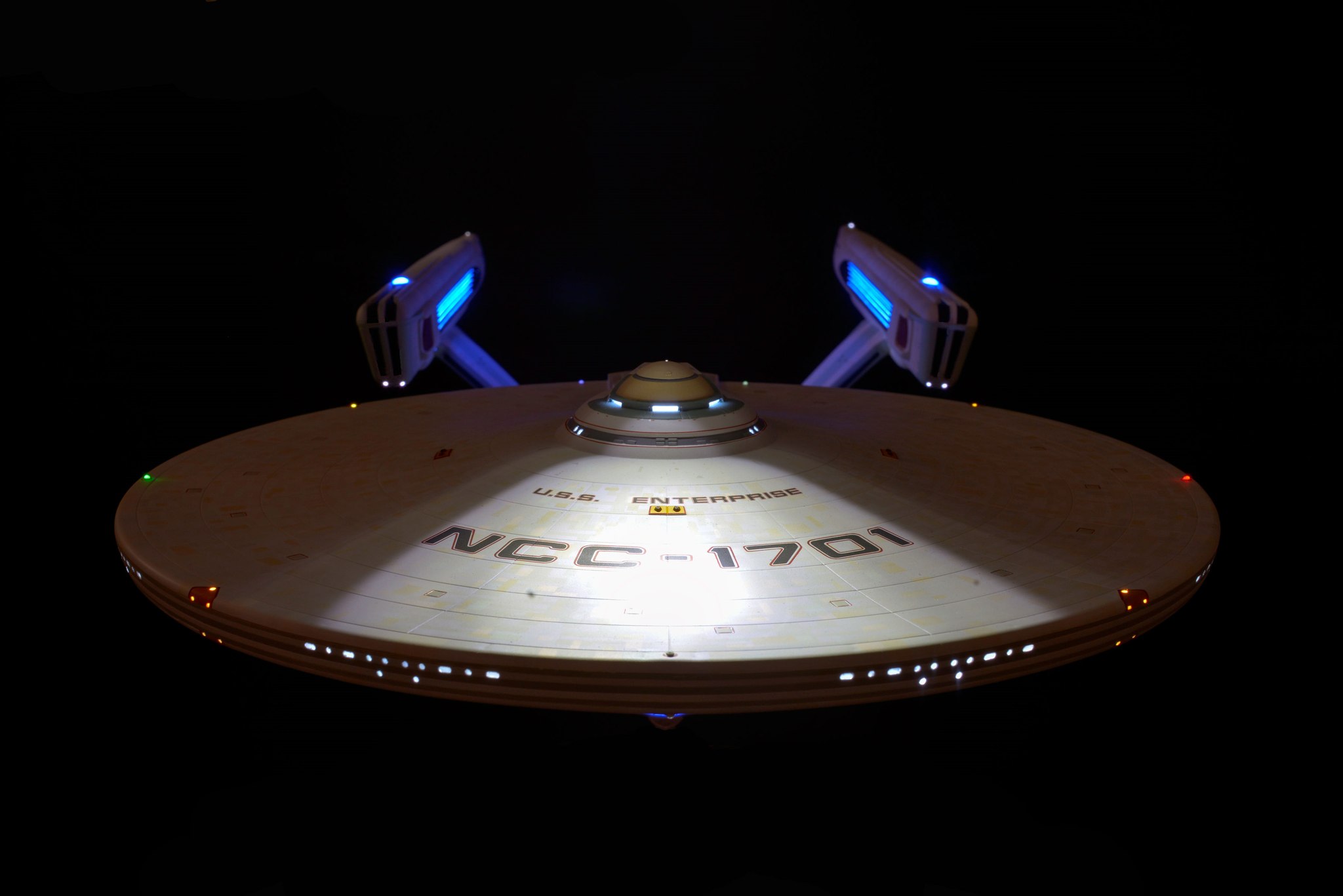

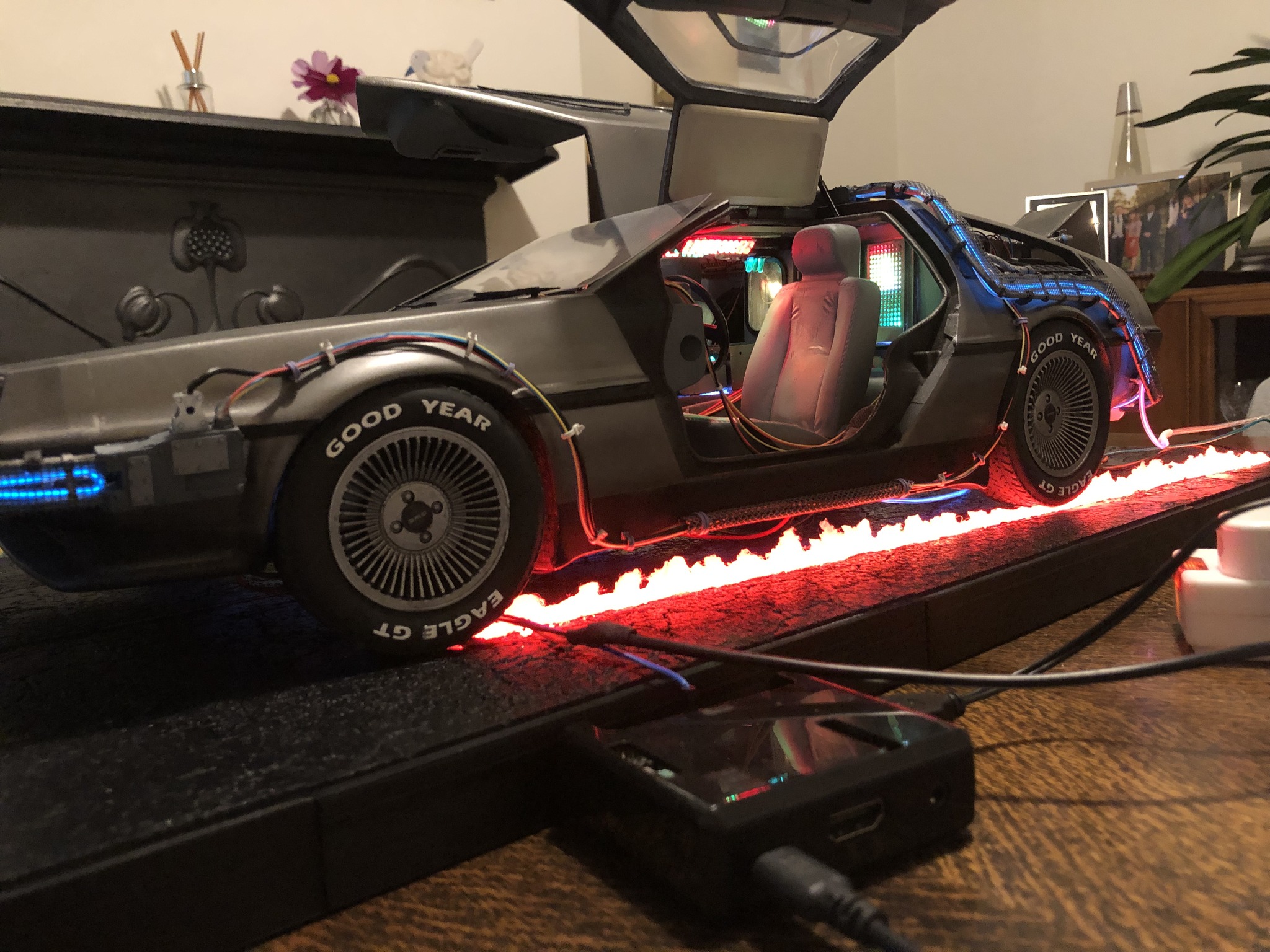

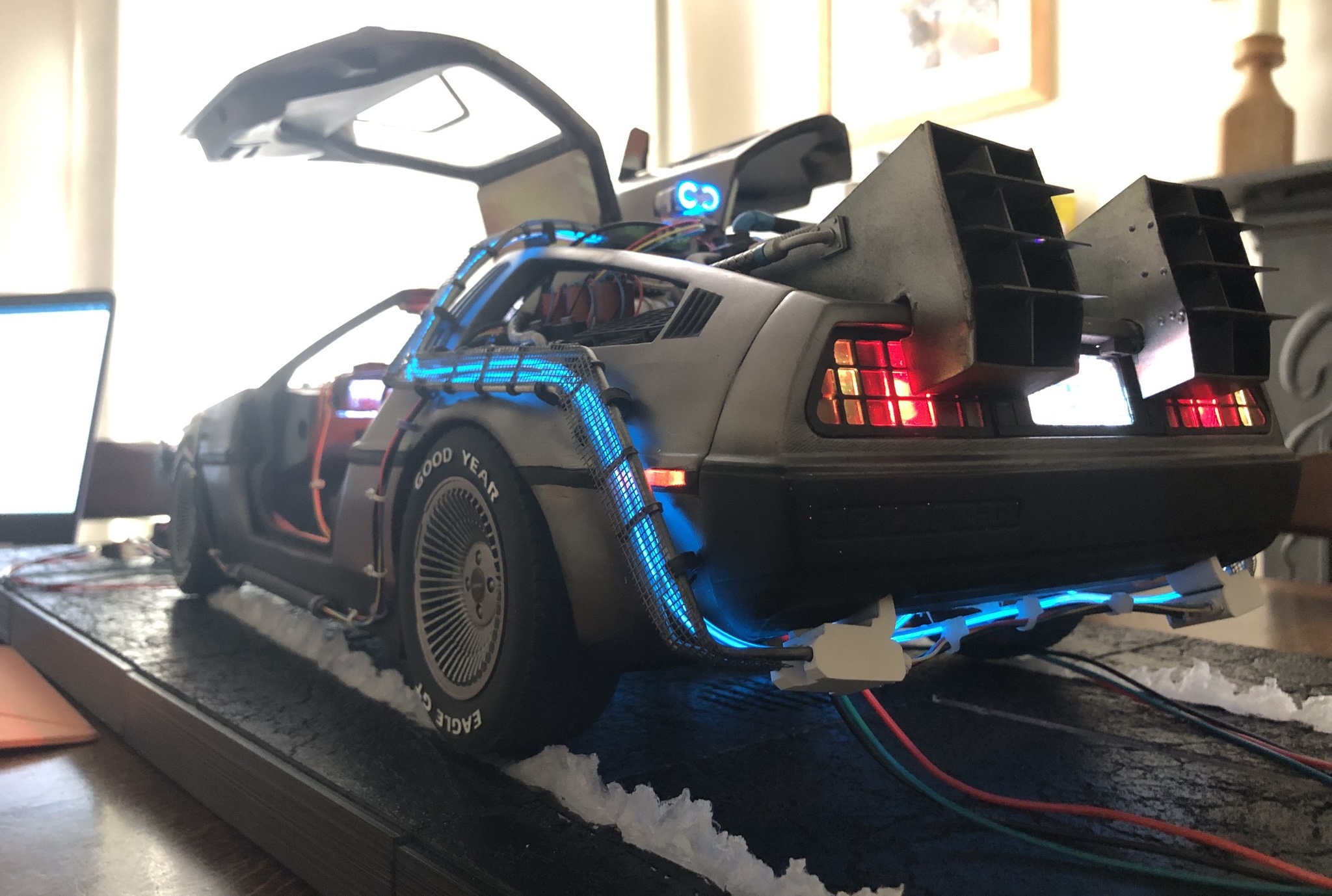

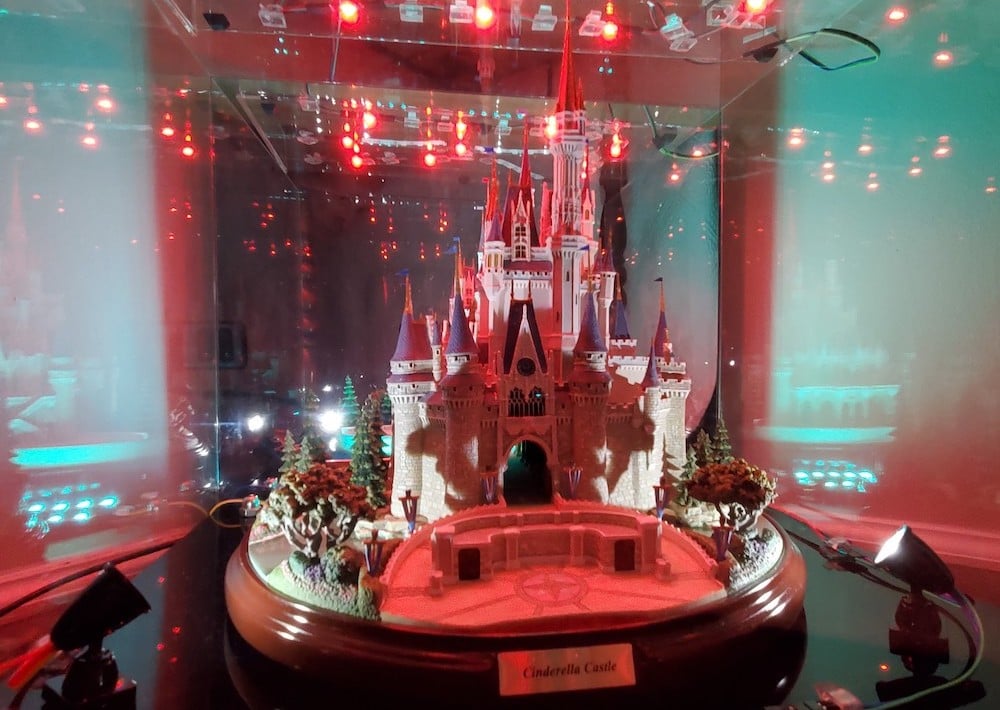

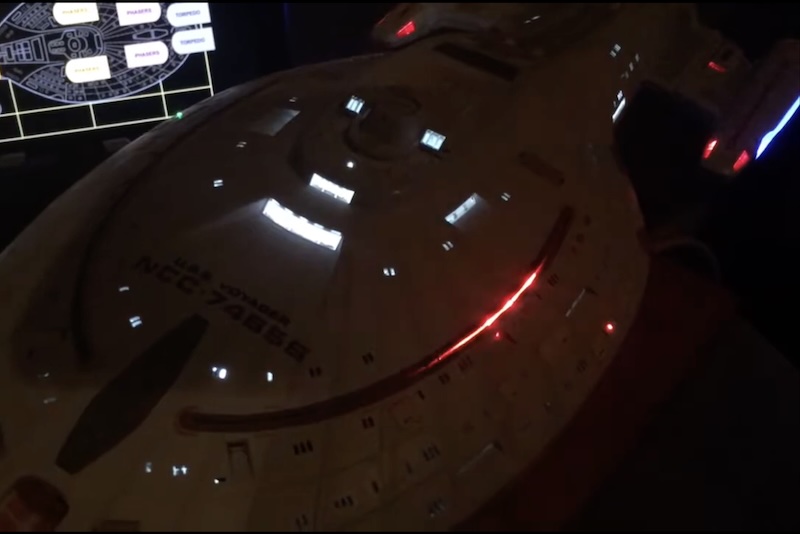

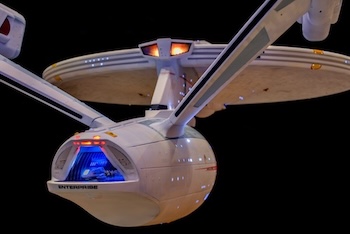

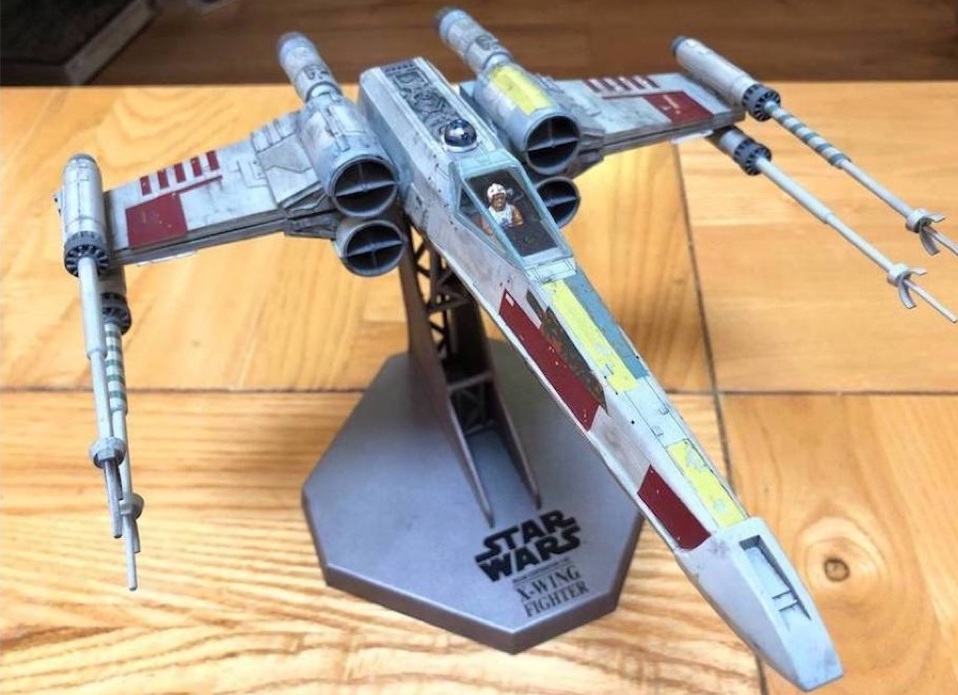

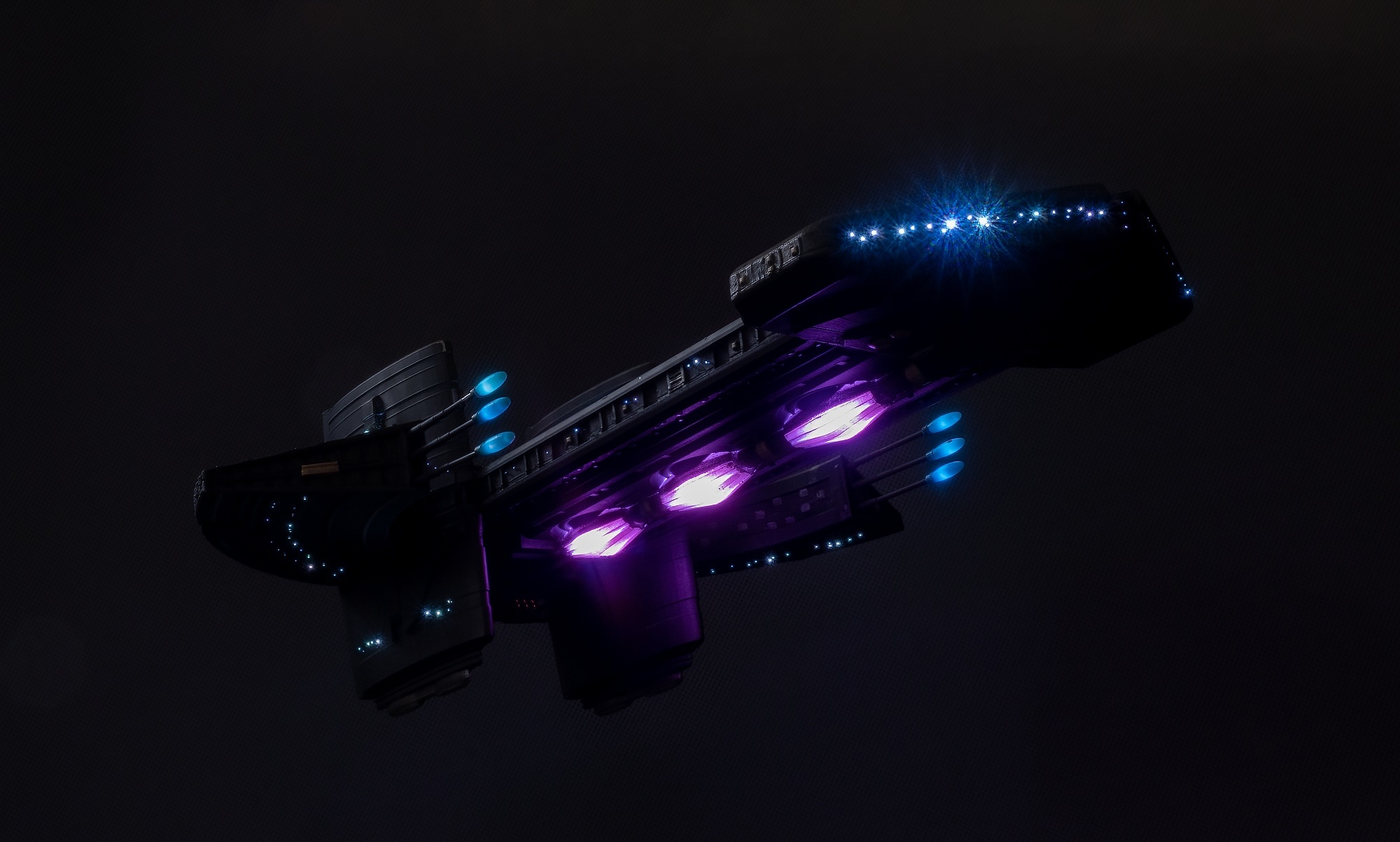

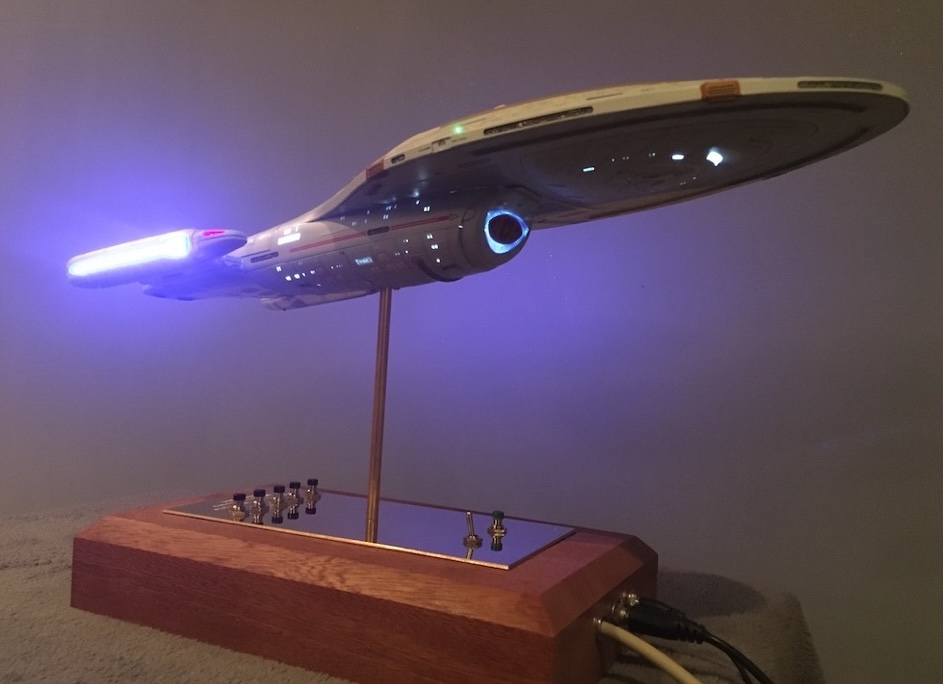

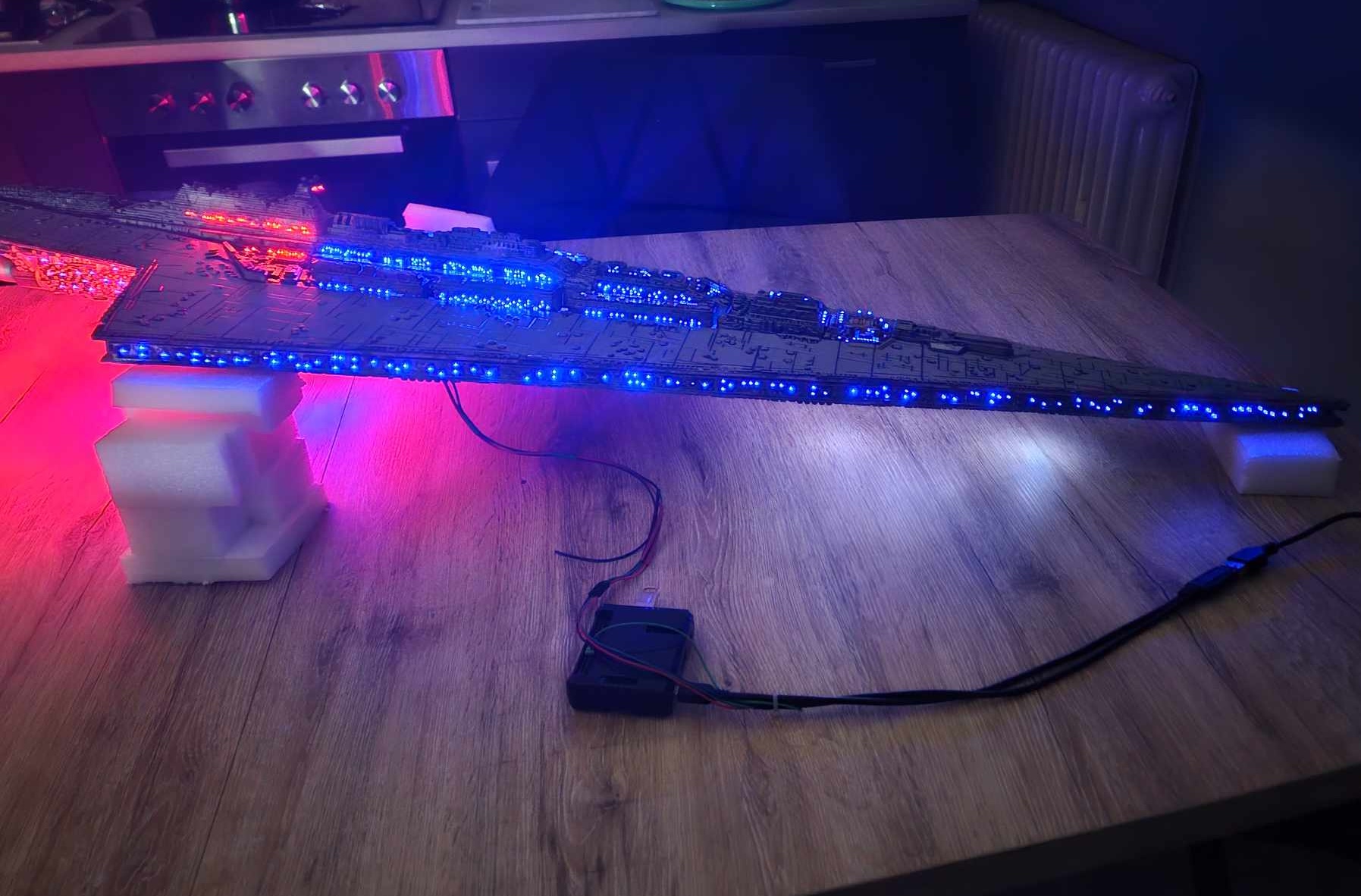

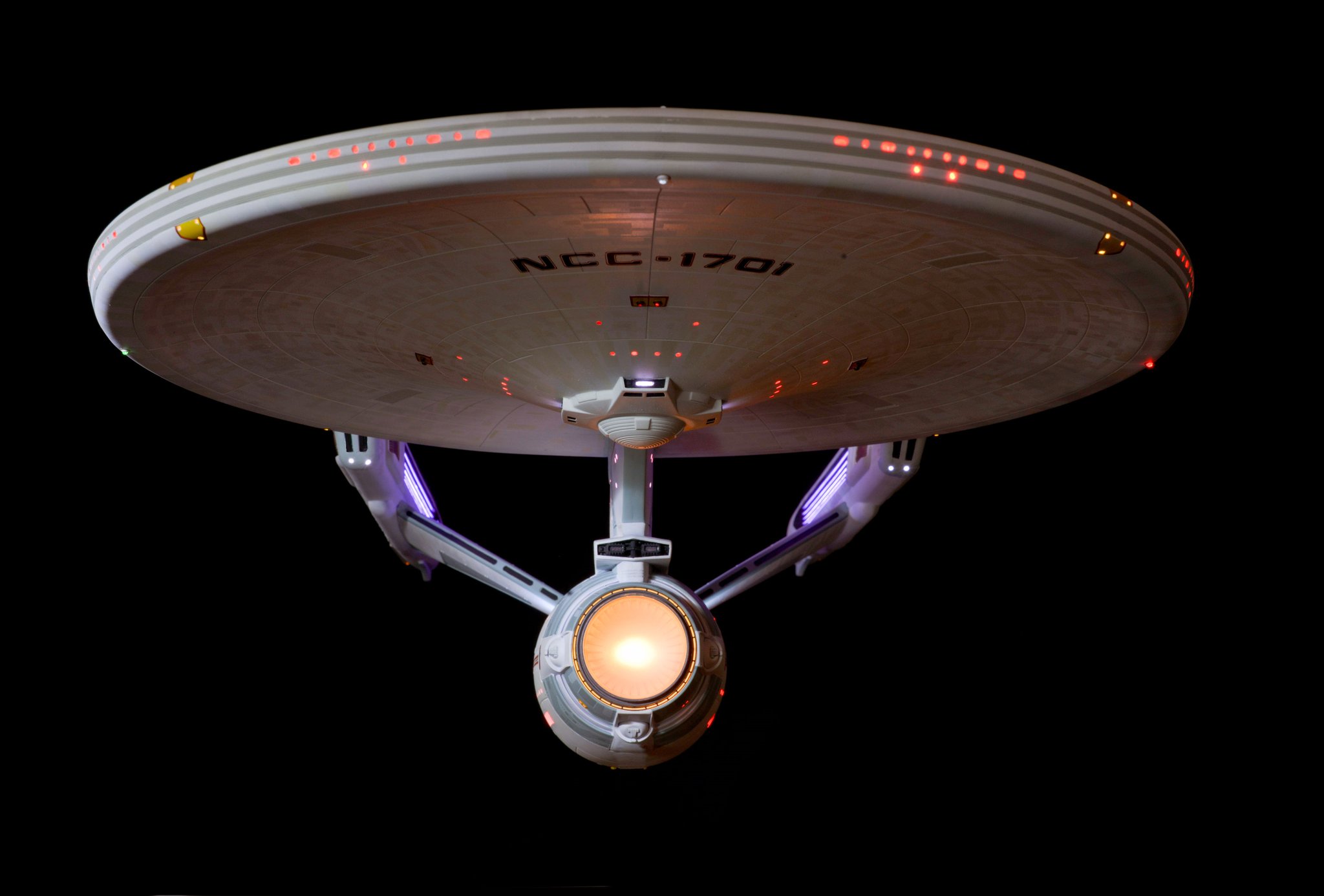

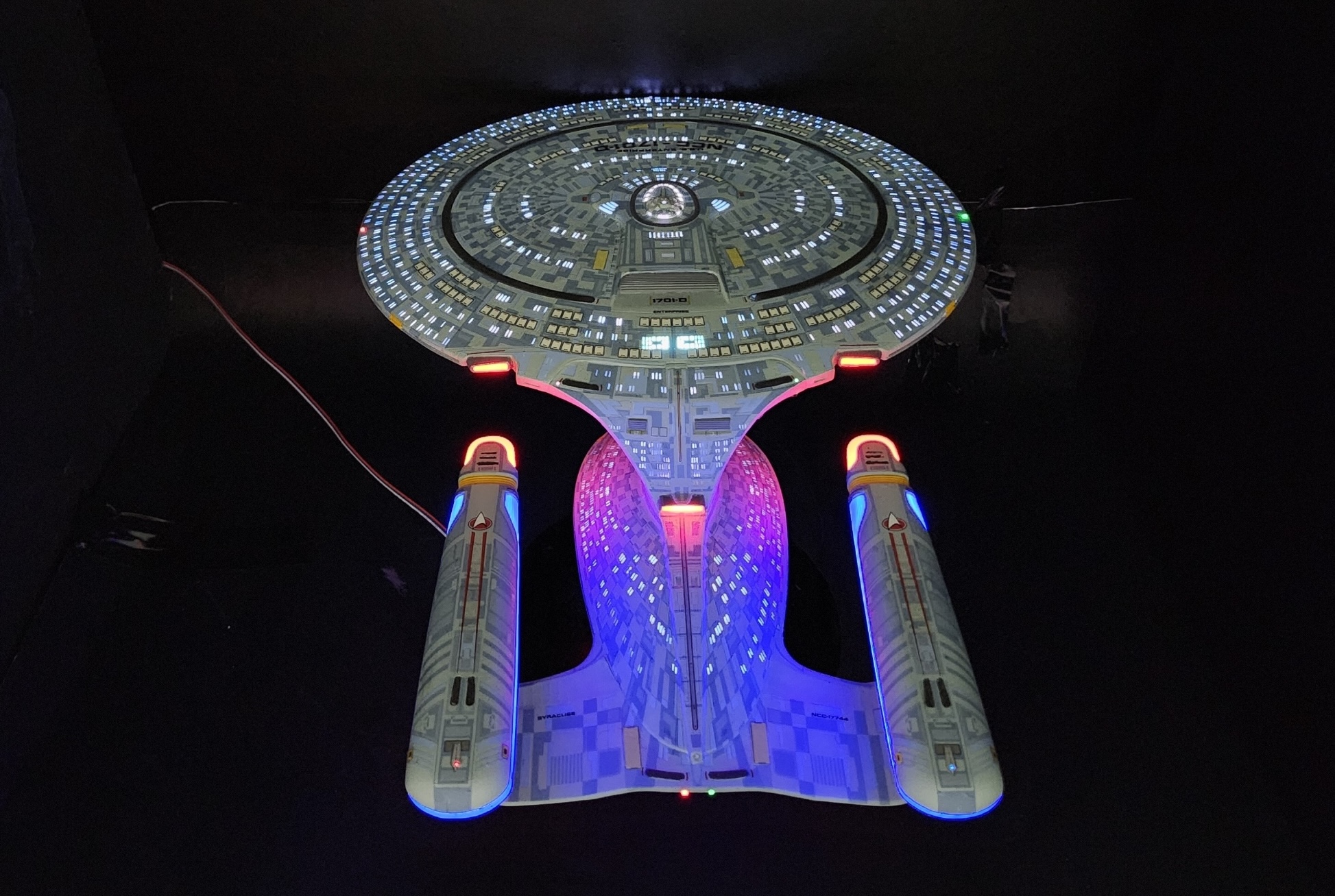

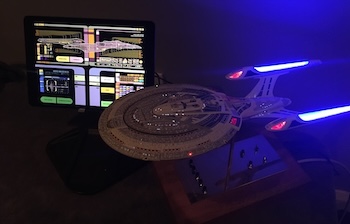

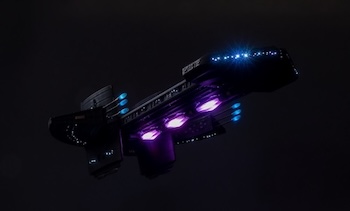

Models built using Inner Light:
Videos of models built using Inner Light:
How it works:

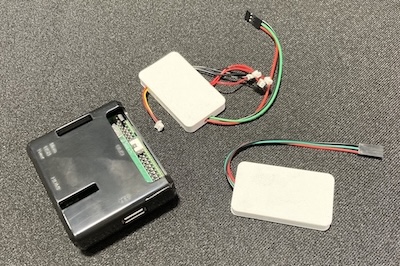

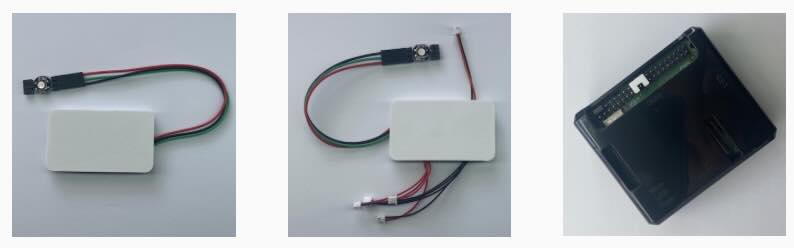

Choose Controller
You start with a controller - this tells each LED what to do, and when. The controller broadcasts its own WiFi signal which you connect to wirelessly to configure and control.
There are three controller options, each powered by 5V DC (via a USB connector).
Compare the versions here

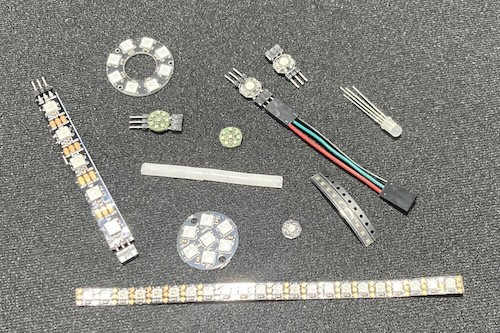

Select LEDs
Next choose your LEDs - you can mix and match depending on your requirements.
Each LED can be controlled individually or as a group
Each is powered by 5V DC, and requires no external resistors
Connect LEDs

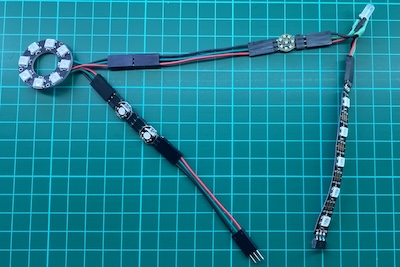

Connect the LEDs inside your model. Only 3 wires are needed (5V, Ground, Data) - and you form a daisy chain around your model using whichever LED types are appropriate
Learn more about how to connect the LEDs here

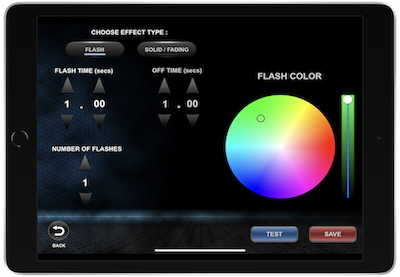

Configure Effects
Then comes the fun part - configure your LED groups, effects and scenes, and get the LEDs doing exactly what you want them to! Flashing, fading, chasing etc
Depending on the controller, you will either use an app, or a browser on your computer/device.
I regularly attend model shows, mainly in the UK, where you can come along and experience the Inner Light solution for yourself. —
Come along and say hello if you can!
United States
 Date |
 Location |
|---|---|
31st May / 1st June 2025 |
Wonderfest, Louisville KY |
United Kingdom
| Date |
Location |
|---|---|
6th Jul 2025 |
Skipton Model Show |
13th Jul 2025 |
Smallspace 12, Hanslope |
31st Aug 2025 |
Stoke Model Show |
20th Sep 2025 |
Scale Scotland, Edinburgh |
21st Sep 2025 |
Keighley Model Show |
12th Oct 2025 |
Lincoln Model Show |
8th / 9th Nov 2025 |
Scale ModelWorld Telford |
-
“This system is a game changer 💥😎”Wayne, motionpictureminiatures.com
-
“Your lighting system is one of the coolest aspects of modeling I have come across in 20 years”
Eric, (Modeller)
-
“Wie geil ist das denn 👍👍👍👍”
Instagram User
-
-
“This is 🔥🔥🔥🔥”
Instagram User
-
“Wow that’s awesome”
Instagram User
Frequently Asked Questions
Is Inner-Light suitable for use in my scale model kit?
Yes - almost certainly. It doesn't matter what your model kit is, or what lighting effects you want to achieve - everything is configurable. Please contact me if you are unsure, but the solution is designed to work with any model.
What if I am not satisfied with my purchase?
Simply send it back within 14 days for a refund (less postage)
How many light chips can be connected together?
Up to 2000 with the Pro Controller, provided that they are powered correctly (please refer to the documentation). Using the supplied cables & pro power supply (5VDC 2 Amp), I recommend no more than 100, which is more than enough for most models - though it depends whether all the LEDs will be on at the same time, as the LEDs draw very little power when not illuminated. You can also reduce the maximum brightness of the entire system, which allows you to have more lights illuminated at the same time. However, at maximum brightness each LED can theoretically draw 60mA (20mA for a single eg red or dedicated white)
How do I control the lights?
There are several options. The lights will all go to a pre-determined state when the controller is powered up. You can then either use physical buttons wired up to the pro controller, or you can connect the pro controller to a WiFi network and control the lights with a web browser. By default the controllers will also broadcast their own WiFi network which you can connect to for configuration and control. You can also control them via any 3rd party app or system capable of sending standard http commands.

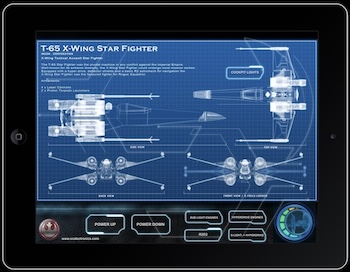

How do I control the lights with an app?
There are several control apps available for iOS and Android which allow you to create a customised user interface and send IP commands to control the lights. Contact me for details and an example configuration file.
How do I control the lights with Amazon Alexa or Google Home?
via IFTTT.com using the Webhooks service - contact me for instructions.
Can I use one control computer to control several different models?
Yes - and with the Pro controller you can save and load different configurations whenever you wish to swap between models
Why did you create this lighting system?
Scale models are all about precision. After building many models as a hobby, I became frustrated with the existing lighting kits available. They all suffered from the same shortcomings, namely:
- They were model specific.
- The and brightness of the lights could not be altered, certainly not after they were installed.
- The lighting effects, if any, were limited and could not be altered
- They required too many wires! This system just needs 3 in total, no matter how many lights you have.
- They could not be controlled across a network.
How bright are the lights?
Extremely bright, if you want them to be. Usually you will want to dim them down (via the configuration software) to provide the desired lighting effect.
How many physical control buttons can be connected to the controllers?
With Pro Controller, up to 8 can be used to change the effects, plus one for shutting the system down, and another for powering it up, if required. (The controller will power up automatically when power is applied). The Lite Plus controller allows 4 buttons to be connected.
Can I also control standard LED lights, or relays etc with the Pro controller?
Yes - there are 5 general purpose 3.3V DC output pins on the Pro controller which can be turned on or off. These can control standard LEDs, motors, or any powered output. There is also an expansion board which lets you control 6 x generic 5V DC outputs to drive standard LEDs, per board.
Is the system compatible with NeoPixel / WS2812 / SK6812 addressable LEDs?
Yes it is - we recommend you only use ones purchased from this website, however any LED or strip using the above protocols, including the new ultra-high density COB strips, should be compatible.
Can I use one control computer to control several models at the same time?
Yes - provided you can run a cable from one model to the next, and subject to the controller's maximum LED capacity.
