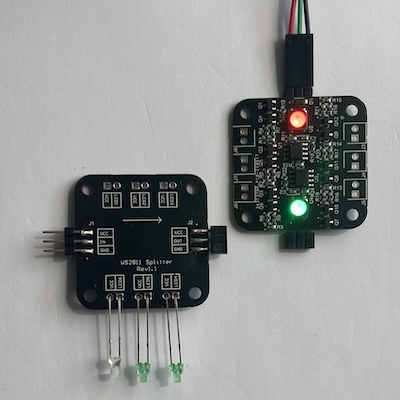

Expansion Board

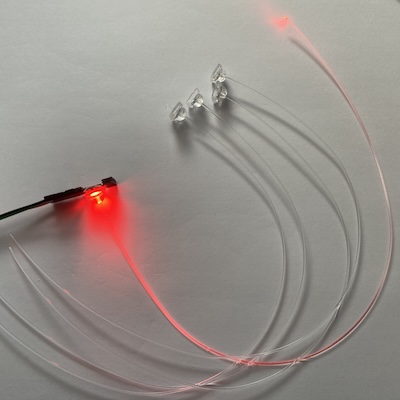

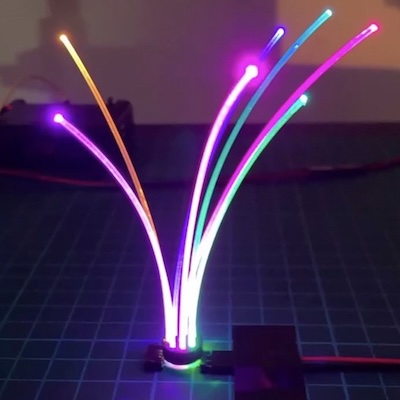

(Pro Controller Only). This board allows you to control up to 6 x 5V DC devices, eg standard LEDs (including dimming), Laser Modules etc, as if they were addressable LEDs on the data chain. The board uses the same protocol as WS2811 / SK6815 addressable LEDs. 2 On board RGB LEDs are also incuded, which can be used with the fibre optic connectors if required. Multiple boards can be daisy chained together, or inserted anywhere on the addressable LED data line. The board takes up either 4 x RGB LED slots, or 3 x RGBW slots - it is compatible with either type of LED system. 500mA max per output.
Compatible with the InnerLight Pro controller, or can be used in any standard neopixel / WS281x project. Note soldering is required (solderless version available on request)
